Fidlock SNAP Male L Screw Low 05007
Fidlock SNAP Male L Screw Low 05007
Available in stock (43)

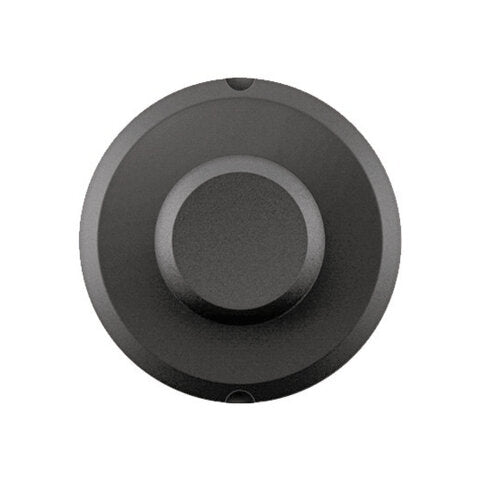

The SNAP male L screw low is designed for materials with a thickness of 0,5 to 1,5 mm and higher load capacities than the M version. Fitted through a screw collar, this male part is compatible with the SNAP push female L 25 LL and SNAP pull female L 25.
Note: The SNAP male L screw low is compatible with the SNAP push female L 25 LL and SNAP pull female L 25. Not suitable for safety-related applications.
| SKU | 05007-000002 (BLK) |
|---|---|
| Sector | Workwear, Bags, Medical |
| Opening Mechanism | Defined by female part |
| Weight | Approx. 9 g |
| Dimensions | 32.9 mm (Ø) |
| Height (Top / Bottom) | 17.4 mm / 3.0 mm |
| Material | PA66GF |
| Material Thickness Compatibility | 0.5 – 1.5 mm |
| Static Breaking Load | 294 N |
| Colour | Black |
| Assembly Method | Threaded Ring |
| Assembly Tools | Front: TOOL 10 Back: TOOL 3 / TOOL 7 / TOOL 23 / Face Spanner |
| Punch Hole Size | 20.0 mm |
