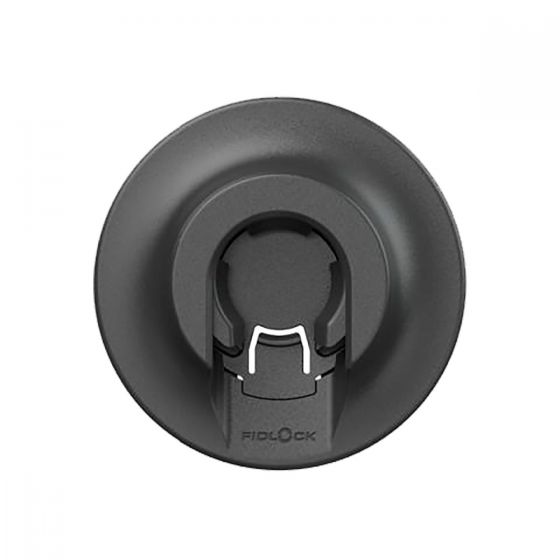

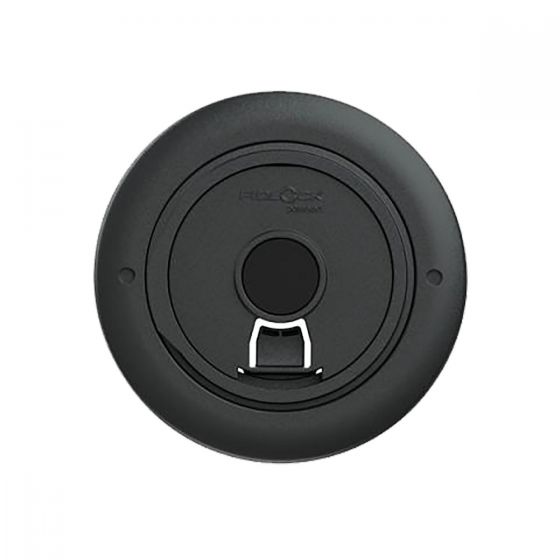

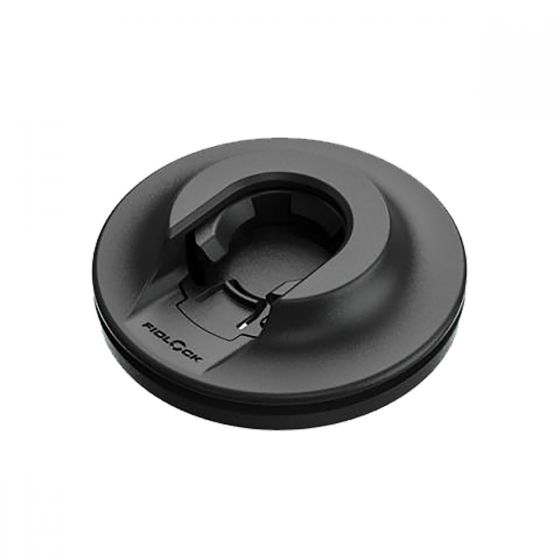

Fidlock SNAP Female L Screw Extra Grip 05605
Fidlock SNAP Female L Screw Extra Grip 05605
Hurry up, only 10 items left in stock.
The SNAP female L screw extra grip is a variant of the SNAP female L screw. Like the SNAP female L screw, it was designed for materials with a thickness of 0,5 to 2,5 mm and offers easy assembly on your product with a threaded ring. The difference, however, is that the SNAP female L screw extra grip requires an increased impulse to disengage the locking mechanism and open the fastener. Naturally, it still features high and intuitive ease of use. This fastening component is compatible with all SNAP male L counterparts.
The SNAP female screw components can be fitted by means of a threaded ring (included) and a face spanner.
Not suitable for safety-related applications.
The load capacity and the suitability of the fastener depend on the size of the components and specific application on the product.
SNAP fasteners always require a combination of a SNAP male part and a female part of the SNAP, SNAP pull or SNAP push product families.
| SKU | 05605-000002 (BLK) |
|---|---|
| Sector | Bags, Apparel, Workwear, Medical |
| Opening Mechanism | Slide |
| Weight | Approx. 17 g |
| Dimensions (Ø x Height) | 50.0 mm x min. 15.1 mm |
| Material | PA66GF, PC-ABS |
| Material Thickness Compatibility | 0.5 – 2.5 mm |
| Static Breaking Load | 294 N |
| Colour | Black |
| Assembly Method | Threaded Ring |
| Assembly Tools | Front: No Tool Back: TOOL 2 / TOOL 3 / TOOL 22 |
